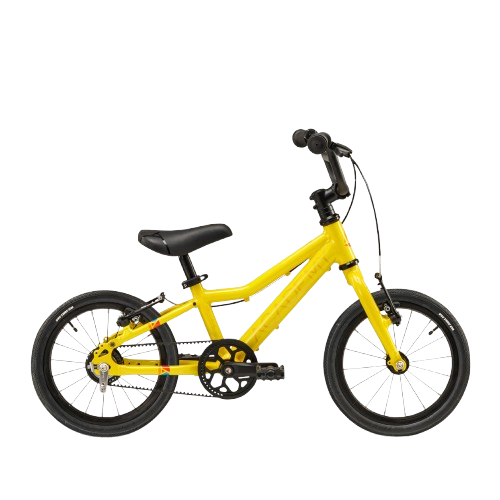

Bicykel Academy Grade 2 Belt Yellow 14" - 2025

Technical Details

• Wheels: 14" x 1.5" x 16H, aluminum, black

• Tires: VEE TIRE Speedster 14"x1.50 (40-254), reflective stripes, 72 TPI

• Frame Material: Triple-butted aluminum

• Frame Shape: Diamond Knick

• Weight: 5.40 kg

• Drive: Single-speed freewheel

• Crankset: C-Drive 48T, 89mm, aluminum (front) and C-Drive 30T, 14mm, aluminum (rear)

• Rear Hub: Aluminum, 14G/16H, black

• Front Hub: Aluminum, 14G/16H, black

• Front Brake: V-Brake (aluminum)

• Rear Brake: V-Brake (aluminum)

• Handlebar: BMX style, 470 mm

• Stem: ACADEMY AHEAD, 50mm

• Seat Post: 25.4mm aluminum

• Saddle: DDK, integrated with seat post

• Pedals: 95x80x23mm, ball bearing, black with reflectors, 9/16 thread

• Chain Guard: Not specified (no chain guard mentioned)

Bike Geometry

• Frame Height: 21 cm

• Seat Tube Length: 205 mm

• Seat Angle: 68.0°

• Head Tube Length: 90 mm

• Steering Angle: 68.0°

• Top Tube Horizontal Length: 350 mm

• Bottom Triangle Length: 267 mm

• Wheelbase: 631 mm

• Minimum Saddle Height: 410 mm

• Maximum Saddle Height: 500 mm

• Crank Arm Length: 89 mm
